Overview

Large-scale wind tunnel testing

Characteristics:

Extremely low noise performance (Measured background sound level: 75 dB – 300 km/h)

  • Highest wind speed of any large-scale low noise wind tunnel in Japan (max. wind speed: 400 km/h)
  • Equipped with a high speed moving ground plane to simulate actual ground moving with high precision.
  • Open type test section: (width) 3 m x (height) 2.5 m x (length) 8 m
  • Closed type test section: (width) 5 m x (height) 3 m x (length) 20 m
Characteristics

Specification:

Items [Model and performance]
[Type of wind tunnel] Gottingen horizontal single return wind tunnel
[Test sections] Open type Closed type
[Cross-section] (width) 3.0 m x (height) 2.5 m (width) 5.0 m x (height) 3.0 m
[Length] 8 m 20 m
[Max. wind speed] 400 km/h 300 km/h
[Uniformity of wind velocity] ± 0.7% or less at 324 km/h (90m/s) ± 0.4% or less at 288 km/h (80 m/s)

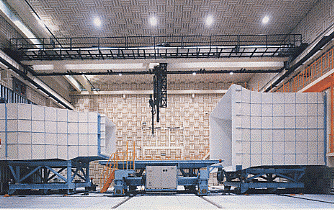

Open type
Open type
Closed type

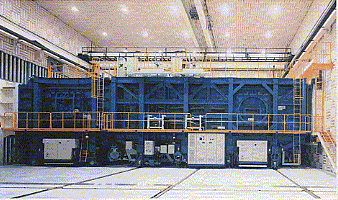

Sealed type

Examples of use:

  • Wind tunnel test to reduce aerodynamic noise from a car body
  • Wind tunnel test of vehicle traveling safety due to cross winds
  • Research on technology to lower noise of car bodies
  • Low noise pantograph wind tunnel test
  • Wind tunnel test of a full-size passenger car
  • Basic testing of various aerodynamic forces

Other wind tunnel tests:
